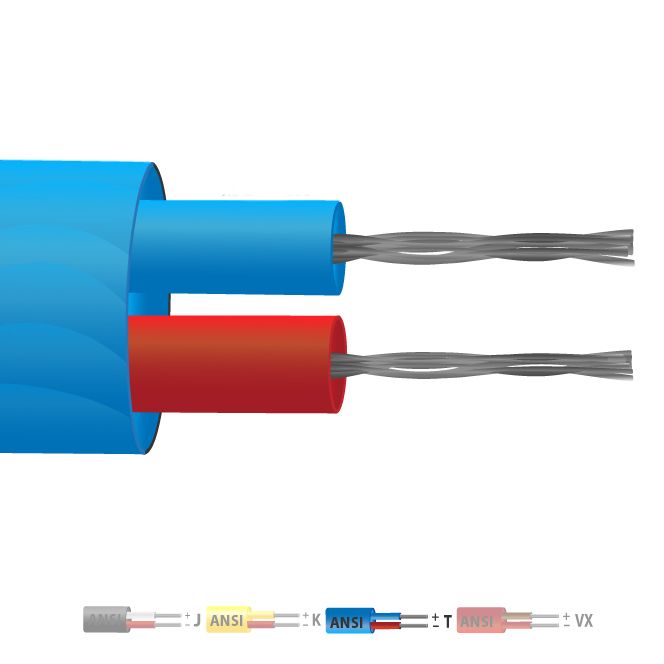

Tipo T PVC isolato piatto coppia termocoppia cavo / filo (ANSI)
Cambia valuta
SKU
XE-2808
5,89 €
4,91 €
Indicazioni
| Descrizione Generale | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Lunghezza del cavo | 10, 25, 50, 100 & 200m |
| Cable Type | Flat pair construction |
| Nucleo / Fili | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Blue |
| + Colour | Blue |
| - Colour | Red |
| Drain Wire | No |
| Materiale isolante | PVC Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 2.3 |
| Massimo Temperatura | +105°C |
| Min. Temperatura | -10°C |
| + Conductor | Copper |
| - Conductor | Constantan |
| Screen | No |
| Standard rispettati | Colour code (cores & jacket) to ANSI MC96.1 |
| Tipo di termocoppia | T |
| Tolleranza | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
