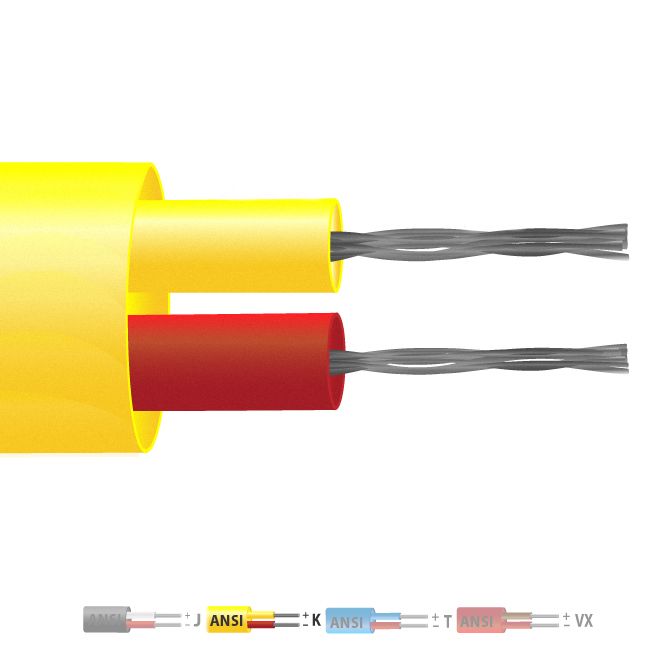

Tipo K PVC isolato piatto coppia termocoppia cavo / filo (ANSI)

Cambia valuta

SKU
XE-2807
16,33 € 13,61 €
Tempi di consegna:
Select Options
Il peso:
0g
Codice tariffario:
90259000
Paese di Produzione:
GB
A norma RoHS:
Product Compliance:

Indicazioni

Descrizione Generale Good general purpose insulation for 'light' environments. Waterproof and very flexible.
Lunghezza del cavo 10, 25, 50, 100 & 200m
Cable Type Flat pair construction
Nucleo / Fili 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Yellow
+ Colour Yellow
- Colour Red
Drain Wire No
Materiale isolante PVC Insulated
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Massimo Temperatura +105°C
Min. Temperatura -10°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen No
Standard rispettati Colour code (cores & jacket) to ANSI MC96.1
Tipo di termocoppia K
Tolleranza Class 2

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.



Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
