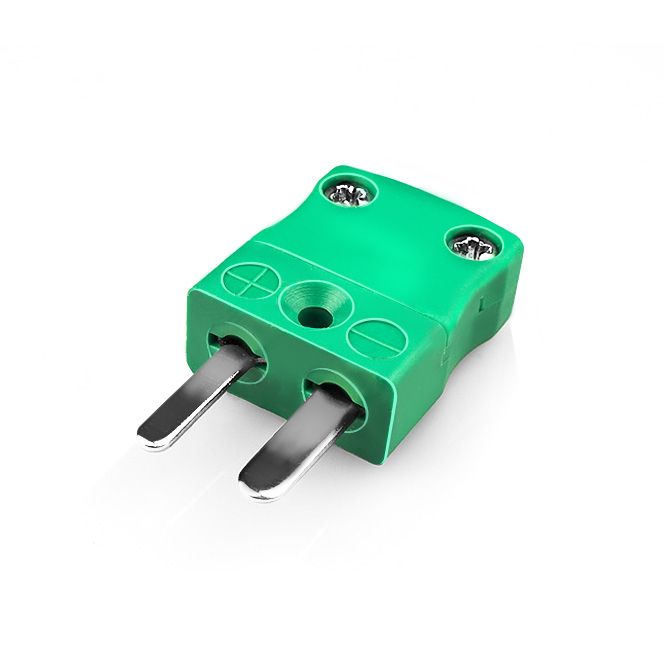

Connettore maschio miniaturizzato per termocoppia IM-K-M tipo K IEC
Cambia valuta
- Buy 2 - 9 for 3,40 € 2,83 € each
- Buy 10 - 99 for 2,89 € 2,41 € each
- Buy 100+ for 2,71 € 2,26 € each
IM-K-M tipo K IEC
Con pin piatti per adattarsi al tipo di termocoppia e ideale per l'uso generico, tutti i contatti sono polarizzati per garantire un collegamento corretto. Questi connettori accettano cavi per termocoppie fino a 4 mm di diametro.
| Descrizione Generale | Ideal for general purpose use. Contacts are polarised to ensure correct connection. |
|---|---|
| Tipo di termocoppia | K IEC |
| Tipo di connettore | Plug |
| Dimensione del connettore | Miniature |
| Colore | Green |
| Massimo Temperatura | 220°C |
| Spilli | Flat Pins |
| +Contatto positivo | Nickel Chromium |
| -Contatto negativo | Nickel Alloy |
| Standard rispettati | BS EN 50212:1997. RoHS |
3D Animation of Miniature IEC Thermocouple Connector Plug From Labfacility
Miniature Thermocouple Plug IEC *Miniature connector with flat plug pins. *Contacts are polarised to prevent incorrect connection. *Connectors will accept thermocouple cable up to 4mm diameter. *Cable clamps available for securing cable to plugs. *Max temperature 220 deg C. About Labfacility Formed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors. Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation. Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. Visit www.labfacility.com
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
