Tipo K PFA isolato doppio doppino doppino termocoppia cavo / filo (IEC)
Cambia valuta
SKU
XE-2122
5,06 €
4,22 €

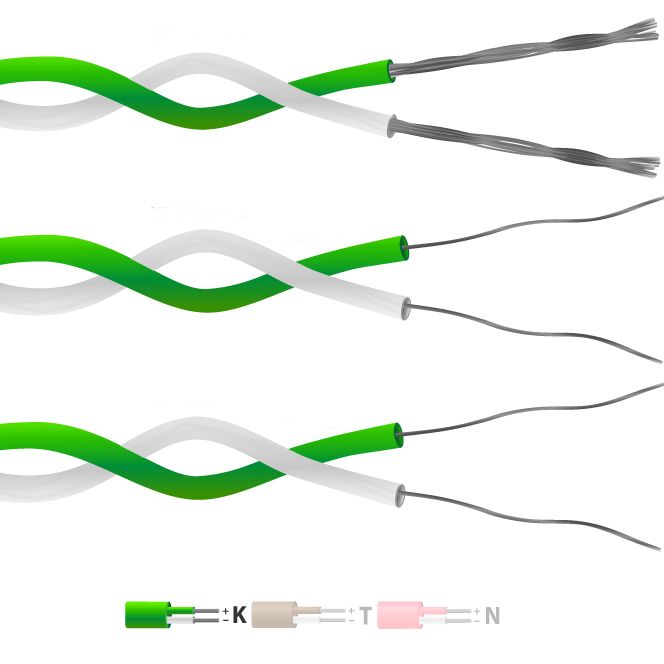

Tipo K PFA isolato doppio doppino doppino termocoppia cavo / filo (IEC)
PFA Teflon doppio doppino intrecciato per estendere o realizzare semplici termocoppie. Il teflonPFA ha una buona resistenza meccanica e flessibilit, resistente a oli, acidi e altri fluidi avversi, gas, vapore e pressione.
Indicazioni
| Descrizione Generale | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments. |
|---|---|
| Lunghezza del cavo | 5m, 10m, 25m, 50m, 100m |
| Cable Type | Single pair of PFA insulated conductors twisted together |
| Nucleo / Fili | 1/0.2mm, 7/0.2mm, 1/0.3mm, 1/0.508mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Materiale isolante | PFA Teflon® |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 31.8 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 4.9 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Massimo Temperatura | +260°C |
| Min. Temperatura | -75°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Standard rispettati | Colour code (cores & jacket) to IEC-584-3 |
| Tipo di termocoppia | K |
| Tolleranza | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
