Tipo K PFA isolato a coppia piatta termocoppia cavo / filo (ANSI)

Cambia valuta

SKU
XE-2800
15,77 € 13,14 €
Tempi di consegna:
Select Options
Il peso:
0g
Codice tariffario:
90259000
Paese di Produzione:
GB
A norma RoHS:
Product Compliance:
Postage & Delivery:

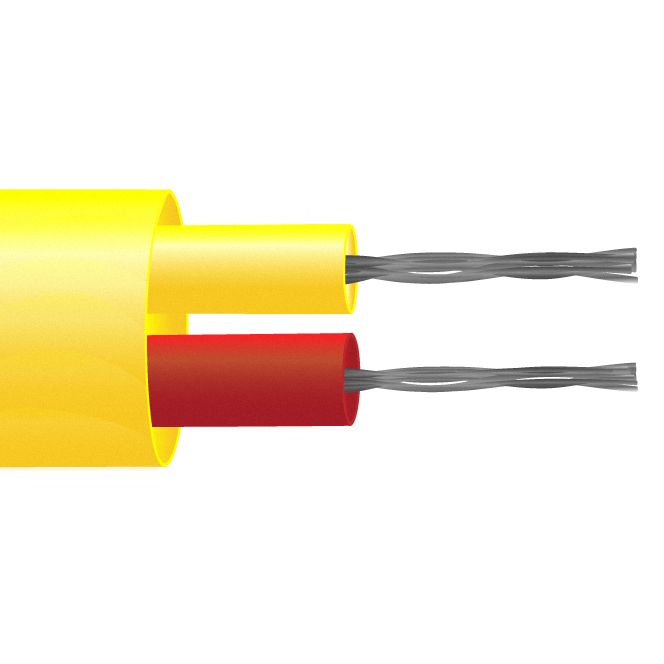

Tipo K PFA isolato a coppia piatta termocoppia cavo / filo (ANSI)

Coppia piatta isolata in teflon PFA. Il teflon PFA ha una buona resistenza meccanica e flessibilit, resistente a oli, acidi e altri fluidi avversi, gas, vapore e pressione.

Indicazioni

Descrizione Generale Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility.
Lunghezza del cavo 10, 25, 50, 100m
Cable Type Single pair of PFA insulated conductors, laid flat with PFA jacket
Nucleo / Fili 1/0.2mm, 1/0.3mm, 1/0.5mm,7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Yellow
+ Colour Yellow
- Colour Red
Drain Wire No
Materiale isolante PFA Insulated
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Massimo Temperatura +260°C
Min. Temperatura -75°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen No
Standard rispettati Colour code (cores & jacket) to ANSI MC96.1
Tipo di termocoppia K
Tolleranza Class 1

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.



Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
