Tipo T PFA Isolato Twin Twisted Coppia Cavo / Cavo (ANSI)
Cambia valuta
SKU
XE-2804
4,38 €
3,65 €

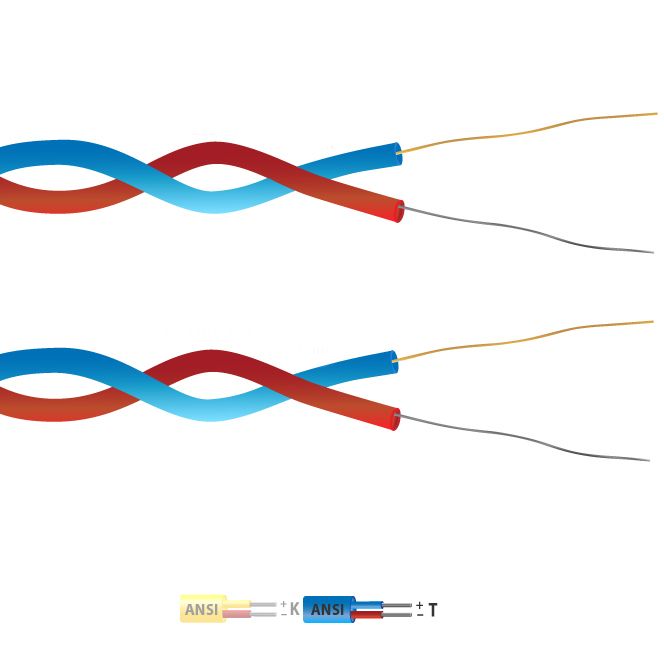

Tipo T PFA Isolato Twin Twisted Coppia Cavo / Cavo (ANSI)
PFA Teflon® coppia intrecciata gemella per estendere o realizzare semplici termocoppie. PFA Teflon®ha una buona resistenza meccanica e flessibilità, resistente agli oli, agli acidi e ad altri fluidi avversi, gas, vapore e pressione.
Indicazioni
| Descrizione Generale | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. |
|---|---|
| Lunghezza del cavo | 10m, 25m, 50m, 100m |
| Cable Type | Single pair of PFA insulated conductors twisted together |
| Nucleo / Fili | 1/0.2mm, 1/0.3mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| + Colour | Blue |
| - Colour | Red |
| Drain Wire | No |
| Materiale isolante | PFA Teflon® |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 16.2 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 6.5 |
| Massimo Temperatura | +260°C |
| Min. Temperatura | -75°C |
| + Conductor | Copper |
| - Conductor | Constantan |
| Screen | No |
| Standard rispettati | Colour code (cores & jacket) to ANSI MC96.1 |
| Tipo di termocoppia | T |
| Tolleranza | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
