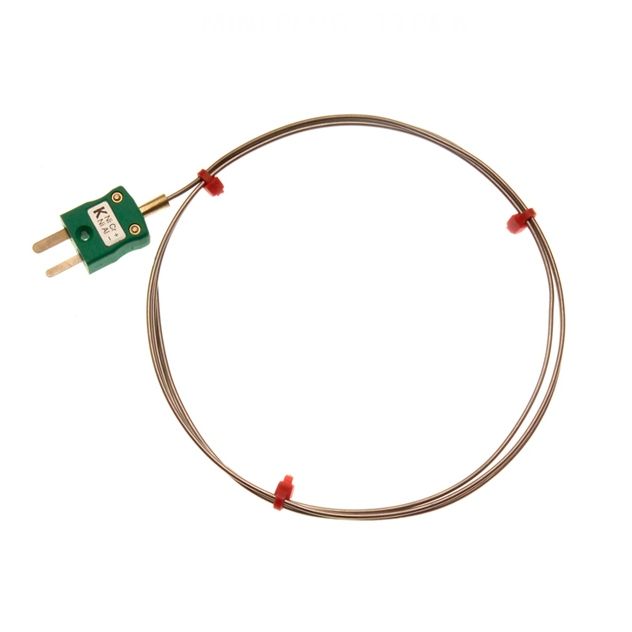

Termocoppia a isolamento minerale con connettore maschio miniaturizzato IEC - Tipi K,J,T,N
Cambia valuta
SKU
XE-3216
19,70 €
16,42 €
26,50 €
22,08 €
| Descrizione Generale | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Tipo di sensore | Mineral Insulated |
| Tipo di termocoppia | K, J, T & N |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Diametro della sonda | 1.0, 1.5, 2.0 & 3.0mm |
| Lunghezza della sonda | 150, 250, 500 & 1000mm |
| Materiale della guaina | K - Stainless steel 310, J - Stainless steel 321, T - Stainless steel 316, N - Nicrosil |
| Tipo di terminazione | Miniature flat pin plug, colour coded in accordance IEC 584 |
| Massimo Temperatura | K +1100°C for 1.5 & 3.0mm diameters +750°C for 1.0mm diameter, J +760°C, T +400°C, N +1300°C. Plug Max. temperature range: 200°C |
| Min. Temperatura | K -40°C, J -100°C, T -100°C, N -100°C |
| Standard rispettati | IEC 584 |
| Tipo di connettore | Plug |
| Dimensione del connettore | Miniature |
| Colore | K - Green, J - Black, T - Brown, N - Pink |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
