Termocoppia a baionetta regolabile IEC, cavo intrecciato in acciaio inox in fibra di vetro - tipo K, J
Cambia valuta
SKU
XE-3405
23,92 €
19,93 €

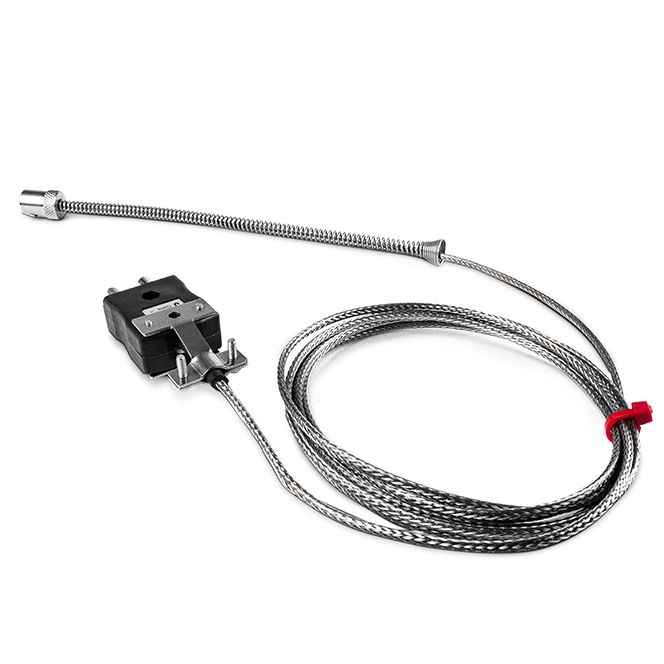

Termocoppia a baionetta regolabile Tipo K o J IEC e Tipo J BS
Termocoppia a baionetta regolabile con molla da 200 mm con cappuccio di fissaggio regolabile (11,5 mm ID a fessura singola).
Indicazioni
| Descrizione Generale | Thermocouple with adjustable insertion depth |
|---|---|
| Tipo di sensore | 6.0mm diameter tip |
| Tipo di termocoppia | K, J IEC J BS |
| Thermocouple Junction | Grounded tip for fast response |
| Lunghezza del cavo | 2, 3m |
| Cable Type | Glassfibre insulated lead with stainless steel overbraid |
| Nucleo / Fili | 7/0.2mm |
| Cable Termination | Bare wire or standard plug |
| Massimo Temperatura | +350°C |
| Min. Temperatura | -60°C |
| Standard rispettati | IEC-584-3 / BS |
| Bayonet cap | 11.5mm I.D. single slot |
| Tipo di connettore | Plug |
| Dimensione del connettore | Standard |
| Dimensioni | 25x13mm shim (0.2mm thick) |
| Thread | M6 x 1mm thread |
| Spring | 200mm |
