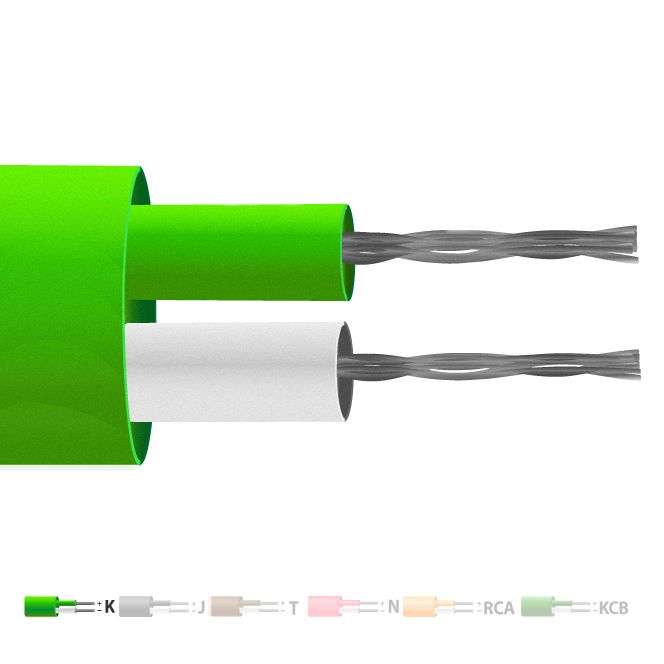

Cavo / filo termocoppia (IEC) Tipo K PVC isolato Coppia piatta
Il cavo di compensazione assomiglia alla caratteristica termoelettrica della termocoppia pertinente in un intervallo di temperatura ambiente limitato, tipicamente da 0 a 80 C. Poich questi cavi sono realizzati con materiali a basso costo, possibile ottenere risparmi sui costi delle installazioni dell'impianto rispetto alla prolunga per termocoppia.
Indicazioni
| Descrizione Generale | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Lunghezza del cavo | 10, 25, 50, 100 or 200m |
| Cable Type | Flat pair construction |
| Nucleo / Fili | 7/0.2mm / 13/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Conductor Cross Section 13/0.2 (mm2) | 0.408 |
| Outer Colour | Green |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Materiale isolante | PVC Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Massimo Temperatura | +105°C |
| Min. Temperatura | -10°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Standard rispettati | Colour code (cores & jacket) to IEC-584-3 |
| Tipo di termocoppia | K |
| Tolleranza | Class 2 |
