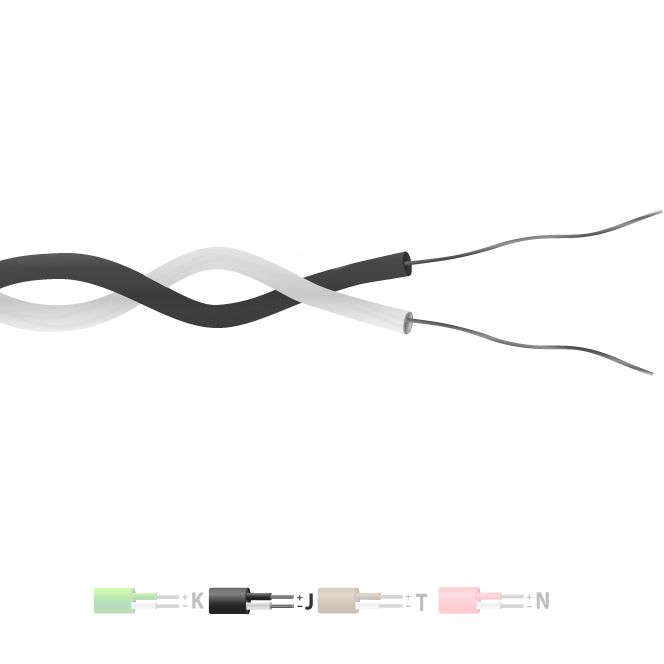

Tipo J PTFE isolato a doppio doppino intrecciato Termocoppia Cavo / filo (IEC)
Cambia valuta
SKU
XE-2242
10,28 €
8,57 €
Tipo J PTFE isolato a doppio doppino intrecciato Termocoppia Cavo / filo (IEC)
Doppio doppino intrecciato isolato in PTFE. Il PTFE ha una buona resistenza meccanica e flessibilità, resistente a oli, acidi e altri fluidi avversi.
Indicazioni
| Descrizione Generale | Resistant to oils, acids adverse agents and fluids. Good mechanical strength and flexibility. |
|---|---|
| Lunghezza del cavo | 10m, 25m, 50m, 100m |
| Cable Type | Twin twisted pair for extending or making simple thermocouples |
| Nucleo / Fili | 1/0.2mm , 7/0.2mm, 1/0.315mm, 1/0.508mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| + Colour | Balck |
| - Colour | White |
| Drain Wire | No |
| Materiale isolante | PTFE insulated |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 19.3 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 7.8 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 3.0 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 2.7 |
| Massimo Temperatura | +260°C |
| Min. Temperatura | -75°C |
| + Conductor | Iron |
| - Conductor | Constantan |
| Screen | No |
| Standard rispettati | Colour code (cores & jacket) to IEC-584-3 |
| Tipo di termocoppia | J |
| Tolleranza | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
