Schermo in rame stagnato a 4 nuclei isolato in PFA, cavo / filo del sensore PRT
Cambia valuta
SKU
XE-2734
39,74 €
33,12 €

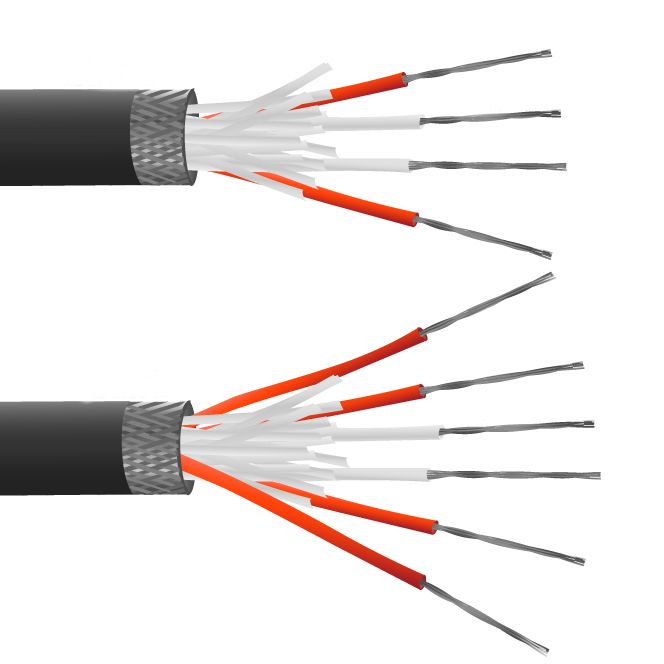

Schermo in rame stagnato a 4 nuclei isolato in PFA, cavo / filo del sensore PRT
Alta temperatura a 260 C, costruzione in teflon PFA estruso. Comunemente usato per termometri Pt100, adatto anche con altri tipi come Pt130, Pt500 e Pt1000
Indicazioni
| Descrizione Generale | PFA insulated 7/0.2mm tin plated copper conductors, twisted cores, tin plated copper braided screen with PFA insulated outer jacket |
|---|---|
| Lunghezza del cavo | 10, 25m |
| Cable Type | PFA Teflon® construction |
| Nucleo / Fili | 7/0.2mm |
| Materiale isolante | PFA Insulated |
| Massimo Temperatura | +260°C |
| Min. Temperatura | -75°C |
| Numero di fili | 4 |
| Standard rispettati | Cores colour coded Red & White in accordance with IEC-751, black outer jacket |
